Price ₹
30,000.00
| General Details: | |

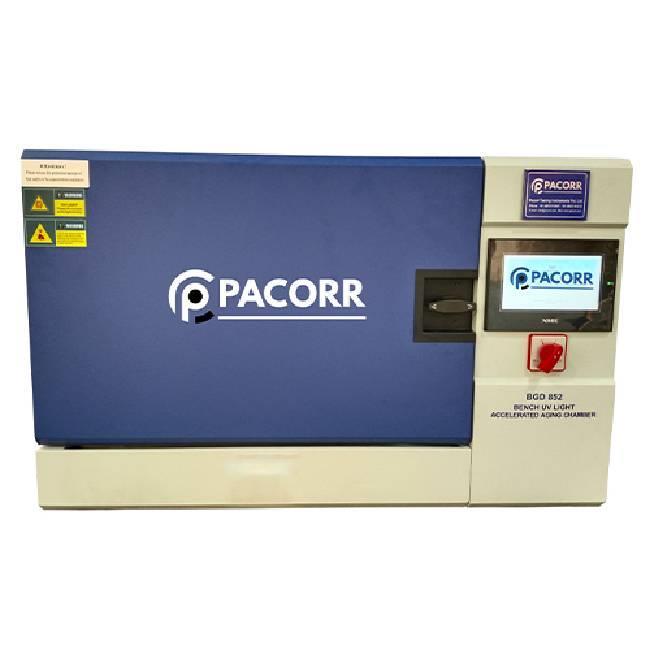

| Model | UV Weathering Test Chamber - HMI Touch Screen |
| Others: | |
| Applicable Materials | Rubber, plastic, non-metals |
| Chamber Specifications | Corrosion-resistant, automatic test operation, programmable tests |
| Chamber Temperature Least Count | 0.1°C |
| Chamber Temperature Range | ±5°C ~ 80°C |
| Chamber Temperature Repeatability | ± 2°C |
| Display | HMI Based Touch Screen |
| Inlet supply of water pressure | 2 kg/cm² |
| Key Features | HMI touch screen, UV lamps, water sprayers, fluorescent light sources, accelerated ageing conditions simulation |
| Life of lamp | 1600 hour |
| Max. Irradiance | UVA lamps: 0.7 W/m² |
| Power Requirement | 220V, Single phase, 50 Hz, 15 A |
| Purpose | Evaluates effects of weather conditions like sunlight, rain, and dew on products |
| Speed of sample rotating frame | 3.7 rpm |
| Standards Compliance | ISO 4892-3:2012, ASTM D4329-13, ASTM D4587-11, ASTM G-151-10 |
| Temperature Control | Pt-100 Sensor |
| Temperature Range | ±5°C to 80°C |
| The flow of water pump | = 7 L/min |
| Timer Range (Spray Period) | 1-99999 Min |
| Timer Range (Spray) | 1-99999 Min |
| Timer Range (Test Temperature) | 1-99999 hour |
| UV Light Types | UVA and UVB lamps |
| UVB lamps | 0.4 W/m² |
