Price ₹
60,000.00
₹2,50,000.00
| General Details: | |

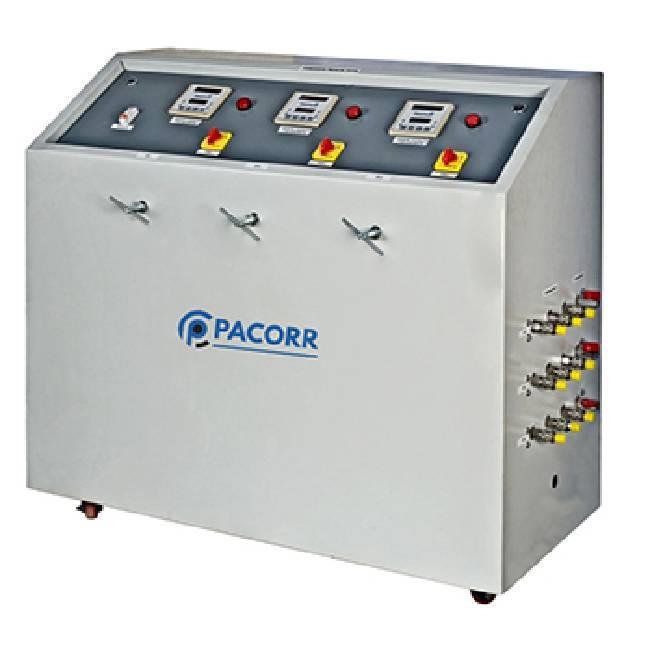

| modal | Hydrostatic Pressure Testing Machine - Digital |
| Others: | |
| Applications | Testing pipes, valves, fittings for water, gas, and oil industries |
| Digital Calibration | Ensures accurate pressure readings and control, critical for reliable testing outcomes. |
| Hour meter with a range of 9999 hrs and an indication of hr | min: sec |
| Model | PCHPT-D |
| Number of stations | 3 |
| Paint | Powder Coating |
| Power requirement | 230V 50Hz. |
| Pressure control | Three digital pressure controllers, solenoid valves & throttle valves. |
| Pressure input | Dry and moisture-free compressed air up to 7kg/cm². |
| Pressure output | Through electro hydro-pneumatic pump with a Mercury-make ratio of 1: 25 |
| Pressure range | 0 - 99.99 Kg/cm² |
| Pressure Range | 0 - 99.99 Kg/cm², accommodating a broad spectrum of testing requirements. |
| Purpose | Evaluating resistance of thermoplastic materials to internal pressure |
| Resolution of | 0.01 kg/cm2 |
| Standards | Complies with IS, BS, ASTM, and other international standards |
| Technology | Utilizes pneumatic technology for consistent performance, equipped with a microcontroller for precision. |
| User-Friendly | Designed for simple operation with minimal manual intervention required. |
