Price ₹
14,000.00

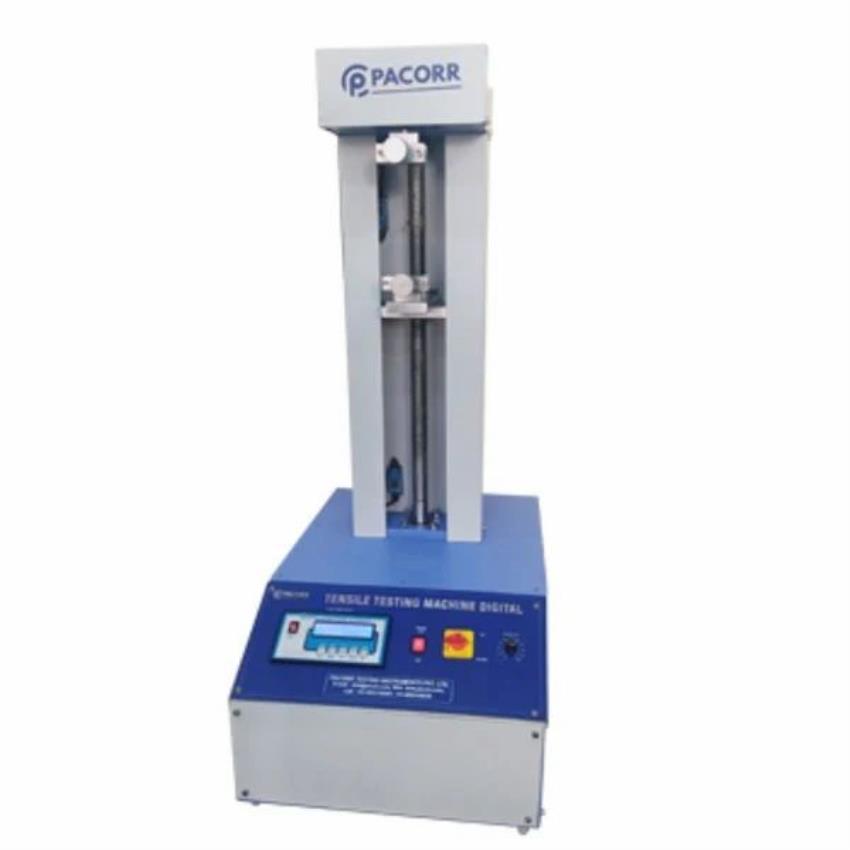

| Model | 50 Hz Peel Bond Strength Tester, 220 V |
| Others: | |
| Brand | Pacorr |
| Country of Origin | Made in India |
| Frequency | 50 hz |
| Material | Advance |
| Model No | PCTTM-1 |
| Payment Mode | Online/Offline |
| Voltage | 220 V |
Price ₹
10,000.00

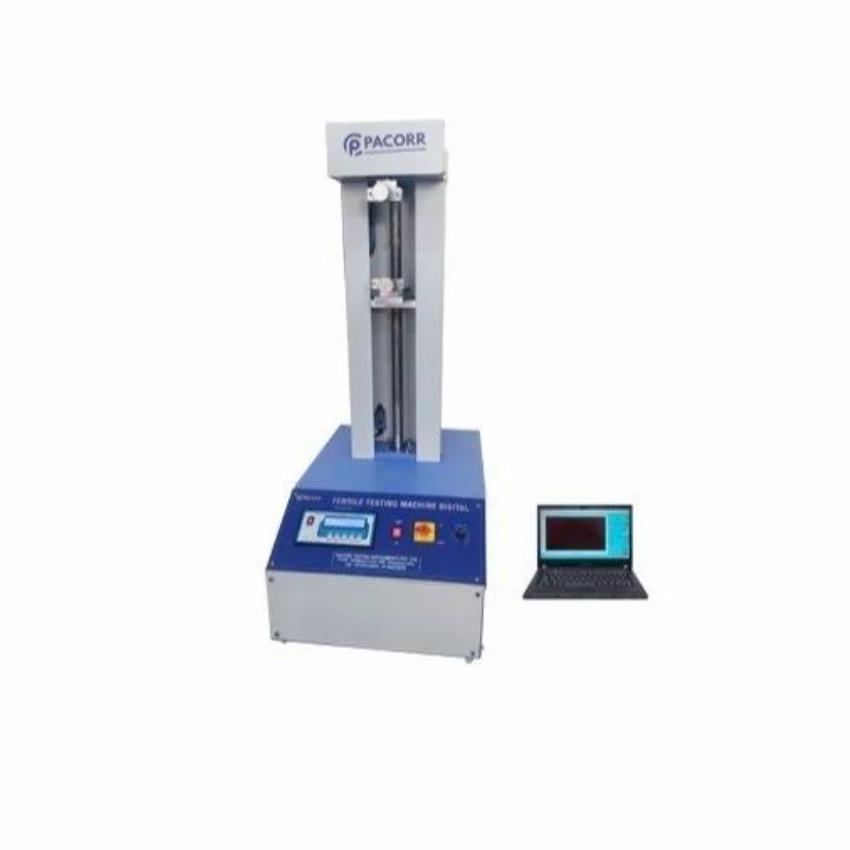

| Capacity | 20Kgf |
| Others: | |
| Brand | Pacorr |
| Country of Origin | Made in India |
| Display | Digital LCD Display |
| Least count for load | 2gm |
| Load cell | 'S Type' load-cell of reputed make |
| Load units | Kg |
| Max. Grip to Grip distance | 500 mm |
| Motor for speed variations | Crompton make induction motor with dedicated gear box |
| Paint | Powder Coated |
| Power Supply | 230 Volt, 50 Hz, Single Phase, AC Supply |
| Results displayed on screen | Load Values |
| Software | RS232 Port with software to interface with PC. |
| Speed control | Dedicated AC Drive |
| Speed Drive | 40mm/min - 400 mm/min (Crompton make) |
| Test jaws | Vice Type (By Default) else Please specify your applications at the time of order. |
| Test Speed | 300mm/min |
Price ₹
10,000.00

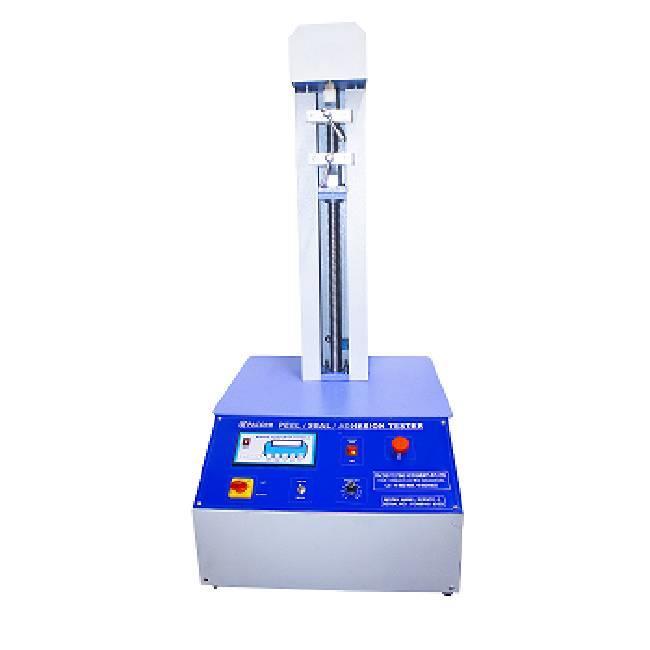

| Model | Peel / Seal / Bond and Adhesion Strength Tester - Digital |
| Others: | |
| Capacity | 20Kgf |
| Display | Digital LCD Display |
| Least count for load | 2gm |
| Load cell | ‘S Type’ load-cell of reputed make |
| Load units | KG |
| Max. Grip to Grip distance | 500 mm |
| Motor for speed variations | Reputed make induction motor with dedicated gear box |
| Paint | Powder Coated |
| Power Supply | 230 Volt, 50 Hz, Single Phase, AC Supply |
| Results displayed on screen | Load Values |
| Speed control | Dedicated AC Drive |
| Speed Drive | 40mm/min - 400 mm/min |
| Test jaws | Vice Type (By Default) else Please specify your applications at the time of order. |
| Test Speed | 300mm/min |
Price ₹
10,000.00

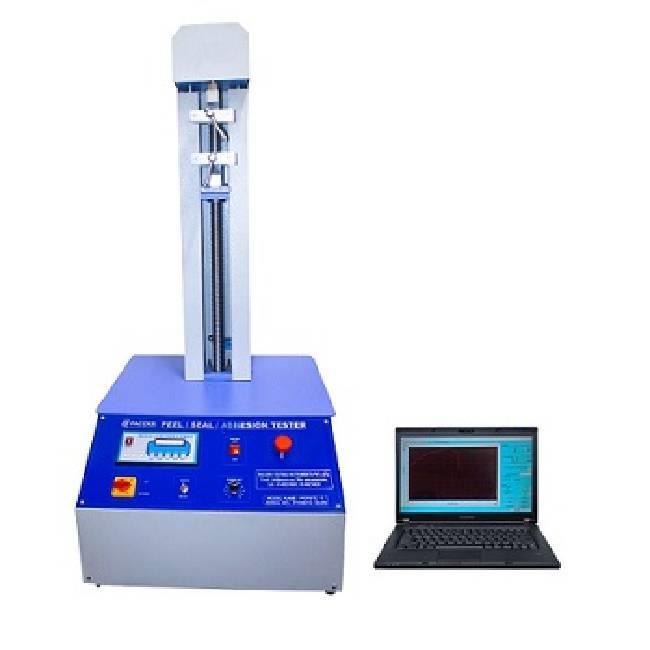

| Model | Peel / Seal / Bond and Adhesion Strength Tester - Digital |
| Others: | |
| Capacity | Multiple load cell options available (customizable as per requirement) |
| Data Output | USB, printer, or software export |
| Display | Digital touchscreen (graphical display of force vs. time) |
| Peel Angle | 90° / 180° selectable |
| Power Supply | 220V AC, 50Hz, single phase |
| Test Speed | Programmable (range typically 50–500 mm/min) |
